Flame Retardant And Anti-static Biaxial Geogrid

Flame retardant and anti-static biaxial geogrid

Double resistant plastic mesh.The grids have an integrally formed structure with high tensile strength on MD and TD directions.
MTTVS Mining Grids are manufactured from special formula with flame-retardant polymer.
The geogrid used in coal mines is a "dual resistance" plastic mesh independently developed by our company.
The geogrid used in the mine is a square grid with polypropylene as the main raw material, which has been treated with flame retardant and anti-static technology and formed by biaxial stretching method.

1. Mining grilles are less prone to generating static electricity due to friction. In the underground environment of coal mines, the average surface resistance of plastic mesh is 1 × Below 109 Ω.

2. The mining geogrid has good flame retardant performance. In an open flame environment, it only melts and does not burn, even if it burns for no more than 10 seconds before extinguishing.

3. Easy to wash coal. The density of this plastic mesh is around 0.92, which is lower than the density of water. During the coal washing process, the broken mesh floats on the water surface and is easy to rinse off.

4. Mining grid has strong corrosion resistance and aging resistance.

5. Easy for construction and transportation. Plastic mesh is relatively soft and should not scratch workers during construction. It also has the advantages of easy curling and bundling, light cutting and specific gravity of mining geogrids, making it easy to transport, carry, and construct underground.

6. Strong load-bearing capacity in both vertical and horizontal directions. After being processed by extrusion and stretching processes, the molecular structure of the plastic mesh is reoriented, and the tensile strength of the material is 2-3 times higher than before stretching. The reinforcement and ribs formed by bidirectional stretching are perpendicular to each other, and this structure allows the pressure applied to the mesh surface to be effectively transmitted to the surrounding reinforcement ribs through the nodes, greatly improving the overall pressure bearing capacity of the mesh surface. When an external force is applied to a particular tendon (or rib), it also evenly distributes the external force to other tendons (or ribs), reducing the concentrated load-bearing capacity of a single tendon, making it less likely to cause the rib to fracture. Secondly, due to the fact that this type of plastic mesh is biaxially stretched rather than woven, the creep deformation of the mesh is small, and the mesh size is uniform, which can effectively prevent the falling of coal fragments, protect the safety of underground workers and the safety of underground workers and the operation of mining cars.

Feature:

1. Easy to construct
2. Good flame retardant performance
3. Corrosion resistance
4. Easy to wash coal
5. Strong load-bearing capacity in both vertical and horizontal directions.

Application：

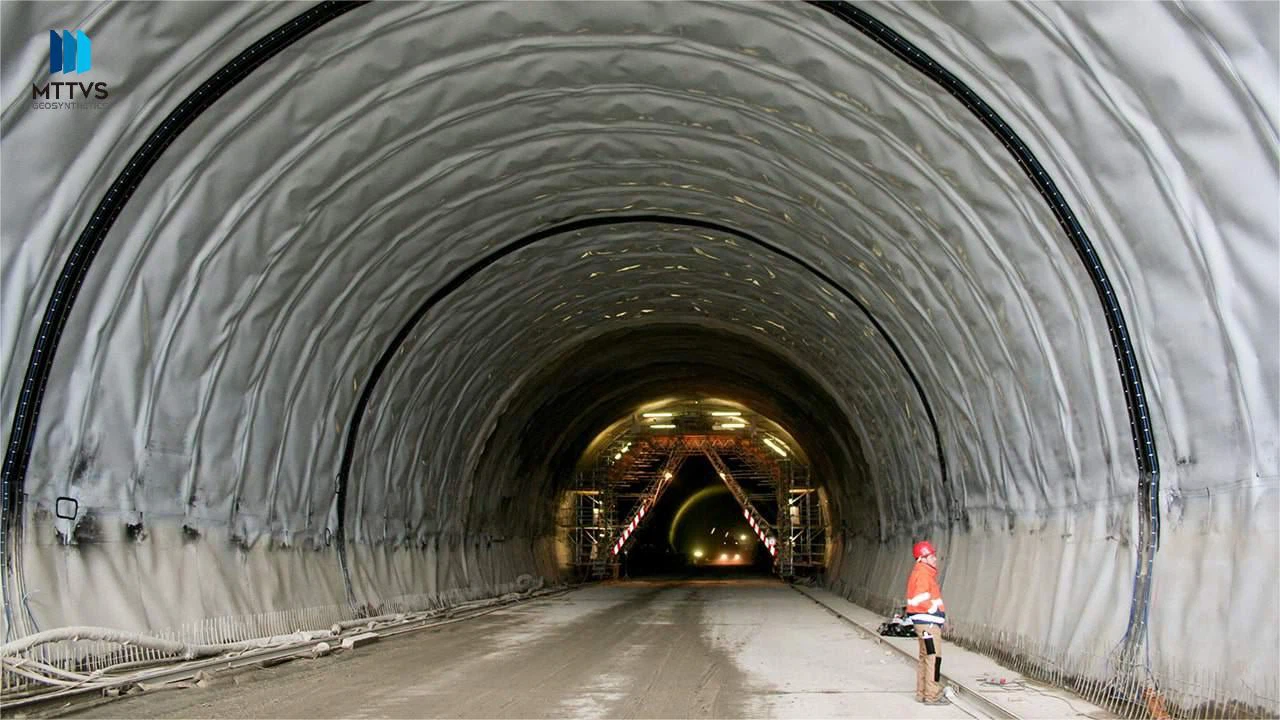

Especially for underground mine and tunnel applications.

Technical parameter：

About MTTVS^® factory

MTTVS^® Geosynthetics is a strong company.Which specializes in the research, development, production, promotion and application of geosynthetics, and is the world's leading supplier of geosynthetics. Founded in 2014 and located in Shandong of China, It has ISO9001, ISO14001 and ISO45001 international authoritative management system certifications. We have more than 10 international advanced equipment production lines and a large professional engineering and technical team. We have successfully developed and integrated the core market to create maximum value for customers. We develop, manufacture and provide innovative and reliable geosynthetics to improve the performance of our customers' products.

Our main business is the production and export of one-stop services and products such as geotextiles,geomembranes,geogrids, geocells,three-dimensional composite drainage nets, ecological bags,drainage boards, 3D geomats, plastic safety fence ,Geosynthetic Clay Liner(Bentonite GCL),Blind ditch,Flexible permeable hose,The plastic biaxially oriented ,Geosynthetics for mining etc.

Our products are exported to 56 countries around the world. Our main customers are from the United States, Germany, Pakistan, India, Kenya, Vietnam, Mirru, Ukraine, Uganda, Bolivia, Ecuador, Australia, France, Sweden, United Kingdom, Hong Kong, Hungary, New Zealand, Poland, Mexico, Brazil, Bangladesh , Thailand, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, UAE, Saudi Arabia, Qatar, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia, etc.

Today, we not only manufacture the best quality geosynthetics products, but also provide professional design and installation services. OEM, ODM, custom development and manufacturing can also be provided. MTTVS^® Geosynthetics is a strong brand manufacturer in the production, promotion and sales industry. By providing advanced solutions and products in various applications and markets worldwide, MTTVS^® Geosynthetics continues to set industry standards and become the most important leader.

Welcome global industry partners to discuss cooperation!

MTTVS^® geosynthetics you can be trusted.
