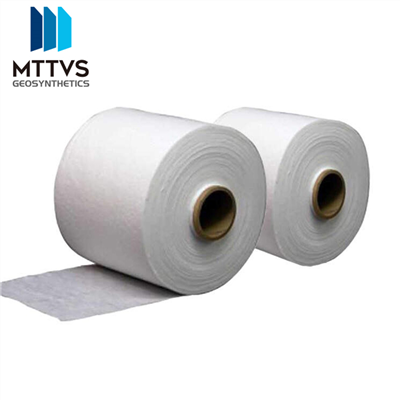

PET Fibers Needlepunched Nonwoven Geotextiles Fabic

Name: PET Fibers Needlepunched Nonwoven Geotextiles Fabic
Brand: MTTVS
SKU: 173943914

Weight:100g to 1000g Width: 1m to 8m Color: white, gray, green, black and other colors available Customized according to customer requirements Large Production Volume Reliable Quality Control Professional Service

Send Inquiry

Product Introduction

PET fibers needlepunched nonwoven geotextiles fabic

Nonwoven geotextiles are permeable fabrics, the original term being filter fabrics. Often made from polyester or polypropylene. Geotextiles come in three basic forms: woven, needle punched, or thermally bonded. Polyester staple fiber needle-punched non-woven geotextiles use polyester staple fiber crimped staple fibers with a degree of 6-12 denier and a length of 54-64mm as raw materials. It is made into cloth through the process of opening, carding, messing (short fibers are intertwined with each other), laying (standardized entanglement and fixation), needle punching and other production processes of non-woven production equipment.

Landfill-capping-withe-Bentofix-GCL-Sealing-mat-680x0-c-center

Features

Separate
Filter
Reinforce
Protection or drainage

Advantage

Durable
Good water permeability
Anti-corrosion
Anti-aging
Anti-UV
Can adapt to uneven base layers
Resistant to construction damage
Small creep
The original function can still be maintained under long-term load.
Simple construction: light weight, easy to use and simple construction.

Application

It is suitable for the reverse filtering of dams and embankments and slope protection of water conservancy projects such as reservoirs, canals and dams.
Isolation and anti-seepage of channels;
It is suitable for basic isolation, reverse filtration and drainage of roads, railways, airport runways and other roads;
It is suitable for soil slope, retaining structure and pavement reinforcement and drainage;
It is suitable for soft foundation treatment of port engineering and coastal engineering, reinforcement and drainage of beach embankment, harbor wharf and breakwater.
Suitable for construction site silt fence
for geotubes
Also used in dune armor to protect highland coastal property from storm surge, wave action and flooding.
Effectiveness in mitigating coastline erosion damage from storms.
Geotextile sandfill units provide a "soft" armoring solution for highland property protection.
Geotextiles are used as pads to stabilize flow in river channels and depressions
Geotextiles can improve soil strength at a lower cost than traditional soil nails
Geotextiles allow planting on steep slopes, further protecting the slopes.
Geotextiles have been used to protect fossilized hominid footprints in Letoli, Tanzania, from erosion, rain and tree roots.

Technical parameters

Properties	Unit	100	150	200	250	300	350	400	450	500	600	800	1000
Color		Black Grey White Green Yellow
Ultimate Tensile Strength	kN/m	3	4	5	8	10	11.7	13.3	15	16.7	20	25	30
Tensile Elongation	%	20~100
CBR Puncture Strength	kN	0.6	0.8	1	1.4	1.8	2	2.3	2.5	2.7	3.2	4	5.5
Mass Deviation Rate Per Unit Area	%	±5
Apparent Opening Size 090095	mm	0.07~0.2
Vertical permeability coefficient	cm/s	K x(10-1~10-3) inside:K=1.0~9.9
Grab Tensile Strength	kN	0.10	0.13	0.15	0.20	0.25	0.30	0.35	0.40	0.43	0.50	0.65	0.80
Thickness≥	mm	0.9	1.3	1.7	2.1	2.4	2.7	3.0	3.3	3.6	4.1	5.0	5.9
Weight	g	100	150	200	250	300	350	400	450	500	600	700	1000
Acid&Alkali Resistance	%	80
Antioxidant Resistance	%	80
UV Resistance	%	80
