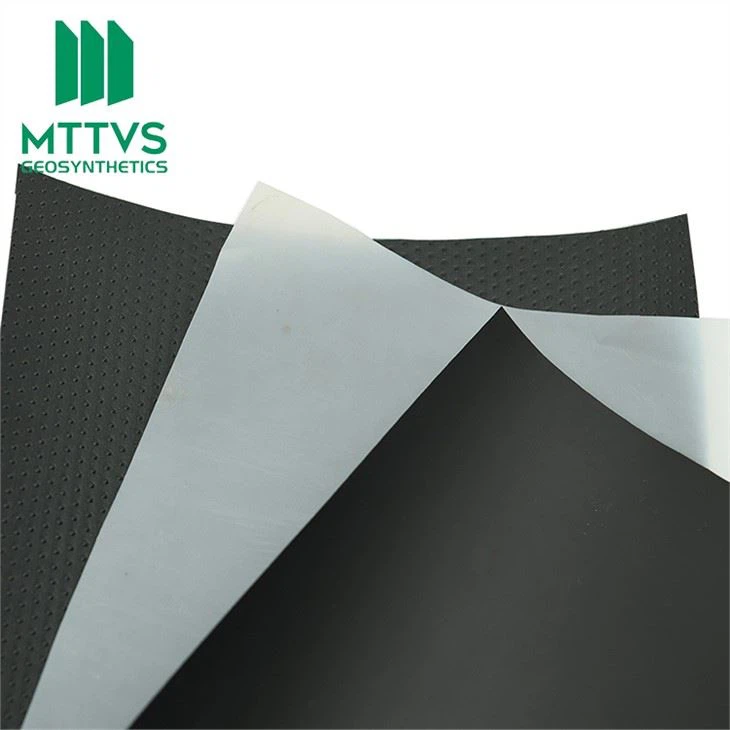

Black Smooth/Textured Impermeable HDPE Geomembrane

Black Smooth/Textured Impermeable HDPE Geomembrane

Long-term durability
High interface friction angle
Pads up to 8m wide
Chemical resistance
Conforms to U.S. standards
For landfill
Customized according to needs

Send Inquiry

Product Introduction

Continuously improve the quality of Geomembrane Pond Liner, Geocells, Hdpe Impermeable Geocomposites Geomembrane Liner to meet the needs of customers to the greatest extent is our pursuit as always. Over the years, we have been adhering to the strict control of all aspects of products from raw material procurement to production, transportation and sales. Choose us, we will become your partner, walk with you, and become your eternal friend with high-quality products, reasonable prices and sincere service.


LANDFILL LINER(HDPE SMOOTH GEOMEMBRANE)

Modern landfills are specifically designed to protect human health and the environment by controlling water and air emissions. All MSWLF must comply with regulations include: Composite Liners Requirements - Overlaid by a flexible and high-density polyethylene (HDPE) geomembrane (a membrane) compacted clay soil lining the bottom and sides of the landfill, protect groundwater and the underlying soil from leachate releases.. A landfill liner, or composite liner, is intended to be a low permeable barrier, which is laid down under engineered landfill sites. Until it deteriorates, the liner retards migration of leachate, and its toxic constituents, into underlying aquifers or nearby rivers, causing spoliation of the local water. HDPE Geomembrane to isolate landfill leachate. There are two types of geomembranes for landfills: smooth landfill liner and textured landfill liner;

MTTVS ®provides special geomembranes for landfills that meet international standards.


MTTVS ® Mechanical properties

High Density Polyethylene geomembrane landfill liner● tensile strength and elongation (index, wide width, axisymmetric, and seams)

● tear resistance

● impact resistance

● puncture resistance

● interface shear strength

● anchorage strength

● stress cracking (constant load and single point).


MTTVS ® landfill liner application

● As liners for waste liquids (e.g., sewage sludge)

● As liners for variousLiners for radioactive or hazardous waste liquid

● Waste conveyance canals

● As liners for primary, secondary tertiary solid-waste landfills and waste piles

● As liners for heap leach pads

● To contain and transport liquids in trucks


LANDFILL LINER( Smooth HDPE Geomembrane ) Specifications:

Properties

TEST METHOD

FREQUENCY

UNIT ENGLISH(METRIC)

MINIMIUM AVERAGE ROLL VALUE ENGLISH(METRIC)

MTTVS 30mil HD

MTTVS 40mil HD

MTTVS 60mil HD

MTTVS 80mil HD

MTTVS 100mil HD

MTTVS 120mil HD

Thickness Lowest individual reading

ASTM D 5199

every roll

mil(mm)

30(0.750) 27(0.675)

40(1.00) 36(0.90)

60(1.50) 54(1.35)

80(2.00) 72(1.80)

100(2.50) 90(2.25)

120(3.0) 110(2.75)

Density

ASTM D 1505

200,000lb(90,000kg)

g/cm3

0.940

0.940

0.940

0.940

0.940

0.940

Tensile Properties (Each Direction)

ASTM D 6693,Type IV

Strength at break

Dumbell,2 ipm

20,000lb(9000 kg)

lb/in-width(N/mm)

114(20)

152(27)

228(40)

304(53)

380(67)

456(80)

Strength at yield

lb/in-width(N/mm)

63(11)

84(15)

126(22)

168(29)

210(37)

251(44)

Elongation at Break

G.L.2.0in(50mm)

%

700

700

700

700

700

700

Elongation at Yield

G.L.1.3in(33mm)

%

12

12

12

12

12

12

Tear Resistance

ASTM D 1004

45,000lb(20,000kg)

lb(N)

21(93)

28(125)

42(187)

56(249)

70(311)

84(374)

Puncture Resistance

ASTM D 4833

45,000lb(20,000kg)

lb(N)

54(240)

72(320)

108(480)

144(640)

180(800)

215(960)

Carbon Black Content

ASTM D 1603*4218

20,000lb(9000 kg)

%(range)

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

Carbon Black Dispersion

ASTM D 5596

45,000lb(20,000kg)

For 10 different views:9 in Categories 1 or 2 and 1 in Category 3

Notched Constant Tensile Load

ASTM D 5397,Appendix

200,000lb(90,000kg)

hr

300

300

300

300

300

300

Standard Oxidative Induction Time

ASTM D 3895,200℃;O2,1atm

200,000lb(90,000kg)

mins

>100

>100

>100

>100

>100

>100

High pressure Oxidative Induction Time

ASTM D 5885

200,000lb(90,000kg)

mins

>400

>400

>400

>400

>400

>400

Oven Aging at 85℃ retained after 90 days

ASTM D 5721

per each formulation

%

Standard Oxidative Induction Time

ASTM D 3895

per each formulation

%

55

55

55

55

55

55

High pressure Oxidative Induction Time

ASTM D 5885

per each formulation

%

80

80

80

80

80

80

UV resistance

Standard OIT After 1600 hours of UV

%

50

50

50

50

50

50

High pressure OIT After 1600 hours of UV

%

50

50

50

50

50

50

Water vapor permeability coefficient

g.cm/(㎠.s.Pa)

≤1.0×10-13

TYPICAL ROLL DIMENSIONS

Roll Length

ft(m)

1,120(341)

870(265)

560(171)

430(131)

340(104)

230(70)

Roll Width

ft(m)

22.5(6.86)

22.5(6.86)

22.5(6.86)

22.5(6.86)

22.5(6.86)

22.5(6.86)

Roll Area

ft2(m2)

25,200(2,341)

19,575(1,819)

12,600(1,171)

9,675(899)

7,650(711)

5175(473)


1


About MTTVS® factory

MTTVS® Geosynthetics Company specializes in the research, development, production, promotion and application of geosynthetics, and is the world's leading supplier of geosynthetics. Founded in 2014 and located in Shandong, China, it has ISO9001, ISO14001 and ISO45001 international authoritative management system certifications. It has strong strength. It has more than 10 international advanced equipment production lines and a large professional engineering and technical team. It has successfully integrated and developed core markets. Customers create maximum value. Through the processing of synthetic raw materials. We develop, manufacture and provide innovative and reliable geosynthetics to improve the performance of our customers' products. Our main business is the production and export of one-stop services and products such as geotextiles, geomembranes, geogrids, geocells, three-dimensional composite drainage nets, ecological bags, drainage boards, 3D geomats, etc.


Our products are exported to 56 countries around the world. Our main customers are from the United States, Germany, Pakistan, India, Kenya, Vietnam, Mirru, Ukraine, Uganda, Bolivia, Ecuador, Australia, France, Sweden, United Kingdom, Hong Kong, Hungary, New Zealand, Poland, Mexico, Brazil, Bangladesh , Thailand, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, UAE, Saudi Arabia, Qatar, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia, etc.

Today, we not only manufacture the best quality geosynthetics products, but also provide professional design and installation services. OEM, ODM, custom development and manufacturing can also be provided. MTTVS® Geosynthetics is a strong brand manufacturer in the production, promotion and sales industry. By providing advanced solutions and products in various applications and markets worldwide, MTTVS® Geosynthetics continues to set industry standards and become the most important leader.

Welcome global industry partners to discuss cooperation!

MTTVS® geosynthetics you can trust


Continuously improve the quality of Black Smooth/Textured Impermeable HDPE Geomembrane to meet the needs of customers to the greatest extent is our pursuit as always. We are committed to striving to create our own brand and make it develop into a world-famous brand, reflecting the dignity of the nation. We will aim to cultivate world-class enterprises, and strive to truly achieve the boundless future of Chinese enterprises in the context of economic globalization.
