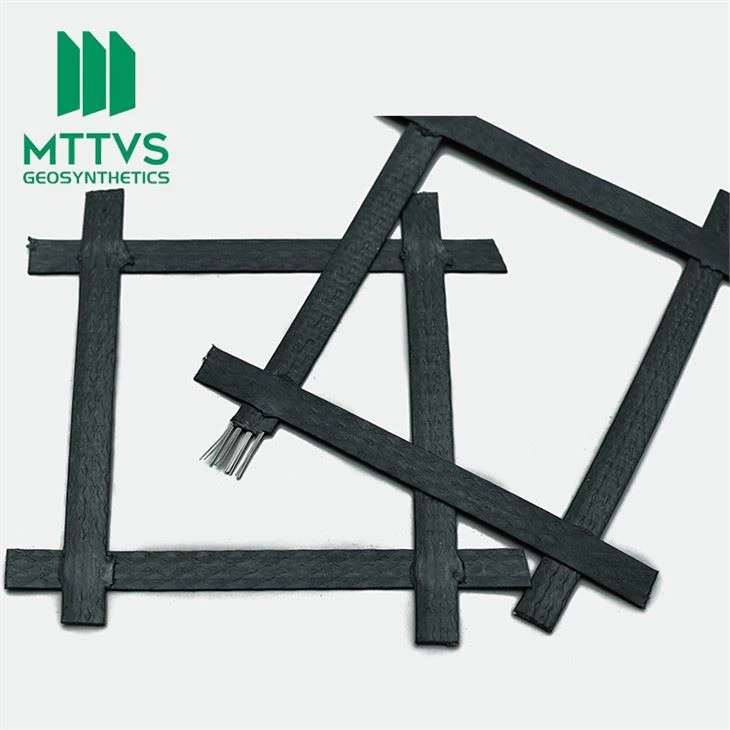

Steel-plastic geogrid with Convex node

Geogrid is a major geosynthetic material. The steel-plastic geogrid is made of high-strength steel wire and polyethylene (PE) and added with other additives through a novel process. The surface has a regular rough pattern. This single belt is woven or sandwiched by a certain distance longitudinally and transversely. The strength of the ultimate peeling force of the steel-plastic geogrid joints is different. There are three connection methods: welding, locking and Convex node.Geogrid with convex node is using fused cast bumps to connect the vertical and horizontal ribs to form a grid, which has high node strength. The shear strength of the welded grid node is greater than 1.5Mpa, the thickness of the node is greater than 5mm, and the limit peel force of the convex node grid node can reach 300~500N.

If you need higher limit detached strength of junction geogrid, please contact our engineers and we will answer you immediately.

Feature

● High strength

● Strong bearing capacity

● Anti-corrosion

● Anti-aging

● High coefficient of friction

● Even holes

● Very low elongation

● Very low creep

● Convenient construction

● Long lasting

● Anti-UV

● High limit detached strength of junction

Application

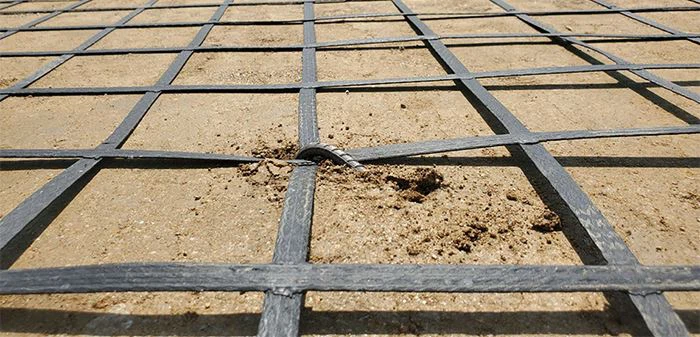

● Railway reinforcement

● Highway reinforcement

● Dam reinforcement

● Retaining wall and pavement crack resistance project

● Deep sea project

● Embankment reinforcement

● Reinforce the roadbed to prevent breakage.

High-strength biaxial steel-plastic geogrid with Convex node specification:

PROPERTIES		Unit	GSZ30-30	GSZ40-40	GSZ50-50	GSZ60-60	GSZ70-70	GSZ80-80	GSZ100-100	GSZ150-150
Ultimate Tensile Strength	MD	lbs/ft(kN/m)≥	172(30)	229(40)	286(50)	343(60)	400(70)	457(80)	572(100)	857(150)
	TD	lbs/ft(kN/m)≥	172(30)	229(40)	286(50)	343(60)	400(70)	457(80)	572(100)	857(150)
Tensile Strength@1% Strain		lbs/ft(kN/m)≥	132(23)	183(32)	229(40)	274(48)	320(56)	360(63)	463(81)	714(125)
Elongation at break		%≤	3	3	3	3	3	3	3	3
Carbon Black		%	2~3
Antifreeze Index		℉(℃)	-95(-35)	-95(-35)	-95(-35)	-95(-35)	-95(-35)	-95(-35)	-95(-35)	-95(-35)
Limit Detached Strength of Junction		N	300~500(customer's demand)
Vertical mesh clearance size (D)		mm	60≤D≤180
Single strip width		mm	≥14
Single strip thickness		mm	≥2.0
Roll Width		ft(m)	19.52(5.95)
Roll Length		ft(m)	164.04(50)

Sheet 2-2

PROPERTIES		Unit	GDZ50-30	GDZ60-30	GDZ80-30	GDZ80-50	GDZ100-50	GDZ120-50	GDZ150-50	GDZ180-50
Ultimate Tensile Strength	MD	lbs/ft(kN/m)≥	286(50)	343(60)	457(80)	457(80)	571(100)	686(120)	857(150)	1029(180)
	TD	lbs/ft(kN/m)≥	172(30)	172(30)	172(30)	286(50)	286(50)	286(50)	286(50)	286(50)
Tensile Strength@1% Strain		lbs/ft(kN/m)≥	132(23)	275(48)	360(63)	360(63)	463(81)	560(98)	714(125)	869(152)
Elongation at break		%≤	3	3	3	3	3	3	3	3
Carbon Black		%	2~3
Antifreeze Index		℉(℃)	-95(-35)	-95(-35)	-95(-35)	-95(-35)	-95(-35)	-95(-35)	-95(-35)	-95(-35)
Limit Detached Strength of Junction		N	300~500(customer's demand)
Vertical mesh clearance size (D)		mm	60≤D≤180
Single strip width		mm	≥14
Single strip thickness		mm	≥2.0
Roll Width		ft(m)	19.52(5.95)
Roll Length		ft(m)	164.04(50)
