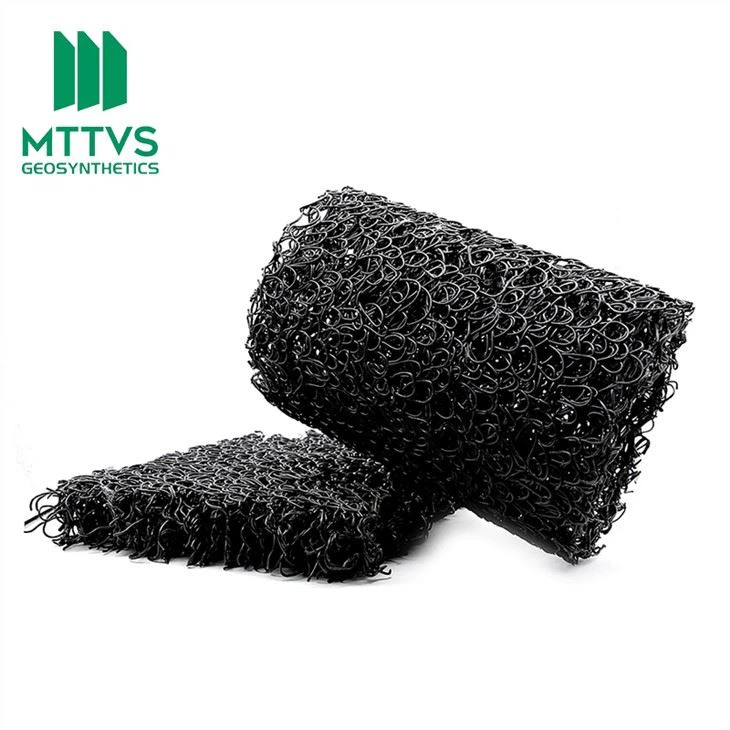

Geocomposite Blind Ditch for Retaining Wall

As a fast growing company, we are providing our customers with safer and greener products with specialized manufacturing technology and high quality Hdpe Lining For Ponds, Biaxial Steel Plastic Weld Geogrid, Pvc Geomembrane Liner. Our company warmly welcomes friends at home and abroad to visit, to discuss cooperation and seek common development! We create high quality products with clean environment and friendly mood.

Blind ditch (concealed ditch)

Blind ditch, also called concealed ditch, refers to the drainage and interception ditch that is filled with coarse-grained materials such as crushed gravel and gravel and is covered with an inverted filter layer (in some cases, a permeable pipe is embedded) that is set in the roadbed or foundation. Blind ditch, also called concealed ditch, is an underground drainage channel used to drain groundwater and lower the groundwater level.

FEATURE

● Permanent service life

The plastic blind ditch is made of corrosion-resistant fiber and the three-dimensional mesh combination of modified polyethylene has the advantage of never degrading in the soil or water. The anti-aging formula can keep the permanent material unchanged. Features.

● variety of specifications can be selected

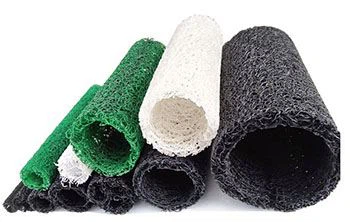

Ordinary round blind ditch

Internal support round blind ditch

Rectangular blind groove

Outsourcing geotextile blind ditch

● Convenient construction

The specific gravity of the plastic blind ditch is light, and the on-site construction and installation are very convenient. The construction efficiency is greatly accelerated.

● Good flexibility and adapt to soil deformation.

APPLICATION

● Tunnel seepage prevention and drainage

● Subgrade drainage of railway highway

● Embankment on soft foundation

● Retaining wall filter

● Slope and internal drainage

● Sports ground drainage

● Landfill drainage

● A large number of engineering examples at home and abroad in the past two decades fully illustrate the reliability of this product. The product has been tested by the Ministry of Communications, Ministry of Water Resources, and Nanjing Institute of Water Science, and the product quality and performance indicators have reached national standards. Some indicators have surpassed Japan, and the prices are far lower than Japanese imports.

Blind ditch specification

Property		Square Shape				Circular shape
		YA0730	YB1235	TA1435	YA1550	YB60	YB80	YB100	YB150	YB200	YB250	YB300
Outer size (width*thickness)	mm	70*30	120*35	140*35	150*50	ɸ60	ɸ80	ɸ100	ɸ150	ɸ200	ɸ250	ɸ300
Cannula size (width*thickness)	mm	40*10	40*10*2	40*10*2	40*10*2	ɸ25	ɸ45	ɸ55	ɸ80	ɸ120	ɸ170	ɸ220
weight	g/m	350	600	650	750	400	750	1000	1800	2900	3700	4500
Porosity	%	82	82	85	85	82	82	84	85	85	85	85
Flat rate 5%	kPa ≥	60	70	80	50	80	85	80	40	50	35	30
Flat rate 10%	kPa ≥	110	110	120	70	160	170	140	70	70	55	50
Flat rate 15%	kPa ≥	150	130	160	125	200	220	180	100	90	80	70
Flat rate 20%	kPa ≥	190	180	190	160	250	280	220	125	120	110	100
