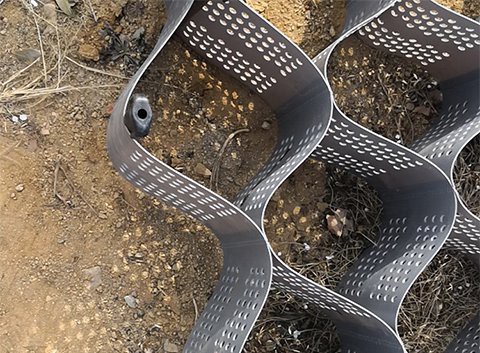

Textured Plastic Geocell Ground Grid Paver

Geocell made of PE or PP sheets through High intensity ultrasonic welding to be three-dimensional net structure material.It uses local materials (sand, gravel, mud, rock and soil etc.) as a filler material to be a combination of the steady structurel, achieve a high load carrying capacity. can make roadbed more steady, but also can plant on it, green the slope stability. Geocell mainly divided into smooth surface geocell, textured surface geocell, with holes or not. The Geocell greatly reduces erosion from weather and heavy or repetitive traffic. The perforation pattern through each cell and weld allows water to drain freely without washing out the material. The textured surface provides additional material retention. It is ideal for use in the construction of slopes and embankments prone to eroding, as well as driveways, roads, parking lots, horse paddocks and animal containment areas, trails and much more.

FEATURE

light weight, abrasion resistance, chemical stability, light oxidative aging, acid, suitable for different soil and desert soil conditions.

Geocell Applying Area

● Be used for firm the roadbed of railroad;

● Be used for firm highway soft foundation handling;

● Be used for dike and retaining wall, which can bear load force;

● Be used to harness the shoal water runway;

● As pipeline and the sewer's propping up structure;

● Be used for mixed type retaining wall that prevent the slope from falling down and bear load force;

● Be used for independent wall, dock and breakwater;

● Be used to harness the desert, beach and riverbed ,river bank

Construction Method

● Unfolding the geogrid (Some fiber-material can be put under the geogrid according to the concrete condition,for example geotextile and felted cushion.)

● Fixing it with nail or connecting with the frame of stretcher;

Textured Geocell Ground Grid Paver Sheet 2-1

Properties	Test method	Units	Values
			GC0735	GC0744	GC0771	GC1035	GC1044	GC1071
Polymer	-	-	HDPE
Carbon Black content	ASTM D 1603	%	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5
Density	ASTM D 1505	g/cm3	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94
Sheet Thickness before texturing	ASTM D 5199	mm	1.1	1.1	1.1	1.1	1.1	1.1
Sheet Thickness after texturing	ASTM D 5199	mm	1.5	1.5	1.5	1.5	1.5	1.5
Seam Peel Strength	-	N	1060	1060	1060	1420	1420	1420
Weld Spacing	-	mm	356	445	711	356	445	711
Cell Depth	-	mm	75	75	75	100	100	100
DIMENSIONS	-
Expanded Cell Size(Width×Length)	-	mm	259×224	320×287	508×475	259×224	320×287	508×475
Expanded Panel Size(Width×Length)	-	m	2.56×6.52	2.56×8.35	2.56×13.72	2.56×6.52	2.56×8.35	2.56×13.72
Expanded Panel Area	-	m2	16.7±1%	21.4±1%	35.12±1%	16.7±1%	21.4±1%	35.12±1%

Textured Geocell Ground Grid Paver Sheet 2-2

Properties	Test method		Values
		Units	GC1535	GC1544	GC1571	GC2035	GC2044	GC2071
Polymer	-	-	HDPE
Carbon Black content	ASTM D 1603	%	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5
Density	ASTM D 1505	g/cm3	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94
Sheet Thickness before texturing	ASTM D 5199	mm	1.1	1.1	1.1	1.1	1.1	1.1
Sheet Thickness after texturing	ASTM D 5199	mm	1.5	1.5	1.5	1.5	1.5	1.5
Seam Peel Strength	-	N	2130	2130	2130	2840	2840	2840
Weld Spacing	-	mm	356	445	711	356	445	711
Cell Depth	-	mm	150	150	150	200	200	200
DIMENSIONS	-
Expanded Cell Size(Width×Length)	-	mm	259×224	320×287	508×475	259×224	320×287	508×475
Expanded Panel Size(Width×Length)	-	m	2.56×6.52	2.56×8.35	2.56×13.72	2.56×6.52	2.56×8.35	2.56×13.72
Expanded Panel Area	-	m2	16.7±1%	21.4±1%	35.12±1%	16.7±1%	21.4±1%	35.12±1%

Note:

● Sheet thickness can be ~~~1.0~1.1mm

● Other welding spacing can be made:356mm,450mm,500mm,660mm etc.

● The special spec or size can be manufactured to the demands of the contract.
