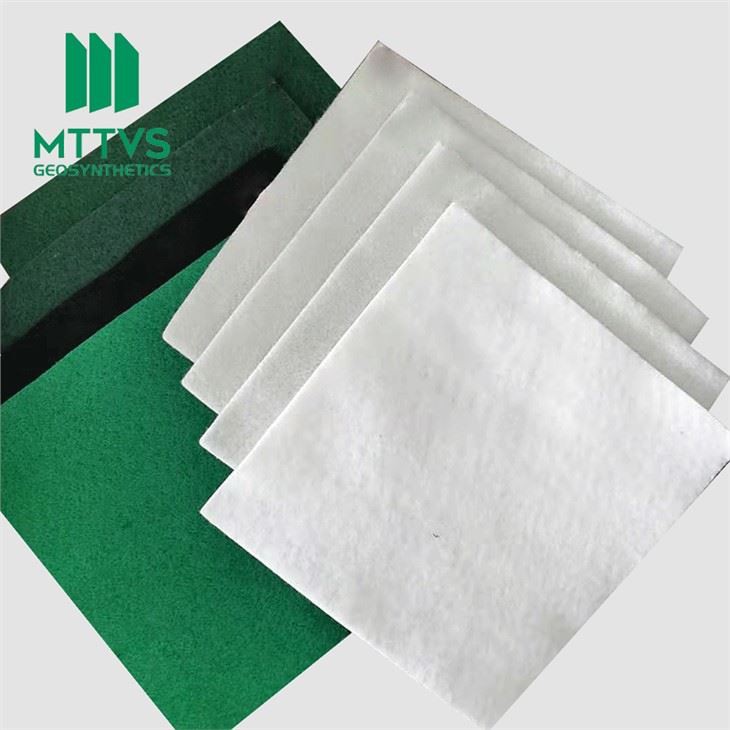

Stable Needle Punched Non-Woven Geotextile

We test every performance of our products with various environmental conditions, and strive to dedicate the fine Geonet, Geomembrane Pond Liner, PP Biaxial Plasitic Geogrid with more reliable and stable performance to the society. Our goal is to become an enterprise that promotes the globalization of values, adapts flexibly to various changes and continuously and rapidly reforms. We honestly face the shareholders' investment, employees' participation, customers' cooperation, social functions, etc., to pursue the interests of all parties to maximize, to create a harmonious enterprise. After years of experience in the industry, our company has introduced advanced processing equipment, built an efficient sales team and established a strict enterprise quality management system. The company gathers scientific and technological elites, relying on strong technical strength and advanced production equipment, based on strict quality management, to provide customers with high-quality products.

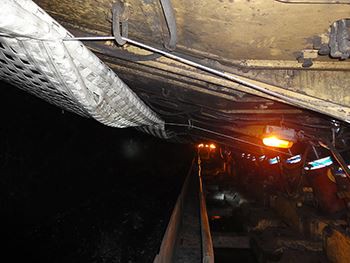

Geotextile in mining works

The polyethylene HDPE geomembrane in the geosynthetic material is used as a barrier, the geosynthetic clay liner (GCL) is used as a barrier, the geogrid is used as a reinforcement, non-woven filtering and separating geotextiles, and geocomposite drainage/exhaust materials are used in mining operations It has long-term performance and has the chemical compatibility necessary to meet the economic and environmental goals of today's mining operations. In mining applications, geotextiles are widely used to protect geomembranes from puncture and deformation.

Geotextiles provide layer separation of particles, filtration stability in geostructures, and protection of other geosynthetics. As an isolation layer, geotextiles are used to prevent adjacent soil layers or filling materials from mixing with each other. In filtration applications, non-woven geotextiles are used to retain soil particles while allowing liquids to pass through the filter media. Together, these materials can improve the recovery of valuable materials, isolate contaminated waste, keep the site open, and make closures more effective and less costly.

Needle punched (mechanically bonded) nonwovens are strong geotextiles that can withstand harsh installation conditions and challenging construction loads. Their unique flexibility and elongation characteristics combine to provide high puncture resistance without compromising filtration performance. MTTVS^® needle punched non-woven geotextile can provide very good long-term filtering effect and achieve high interface friction angle.

FUNCTIONS

● Filtration

● Separation

● Drainage

● Reinforcement

APPLICATION

● Heap leaching in mining operations

● Tailings management

● Evaporation pond

● Mine Closure

● Access roads and other geotechnical structures

Geotextile for mining

Properties	Unit	100	150	200	250	300	350	400	450	500	600	800
Mass error in unit area	%	-6	-6	-6	-5	-5	-5	-5	-5	-4	-4	-4
Thickness≥	mm	0.8	1.2	1.6	1.9	2.2	2.5	2.8	3.1	3.4	4.2	5.5
Error of width	%	-0.5
Breaking strength ≥	kN/m	4.5	7.5	10.0	12.5	15.0	17.5	20.5	22.5	25.0	30.0	40.0
Elongation at break	%	40-80
CBR puncture resistance≥	kN	0.8	1.4	1.8	2.2	2.6	3.0	3.5	4.0	4.7	5.5	7.0
Equivalent Pore size 090095	mm	0.07-0.2
Vertical permeability coefficient	kx cm/s	Kx(10-4-10-3)
Tearing strength≥	kN	0.14	0.21	0.28	0.35	0.42	0.49	0.56	0.63	0.70	0.82	1.10

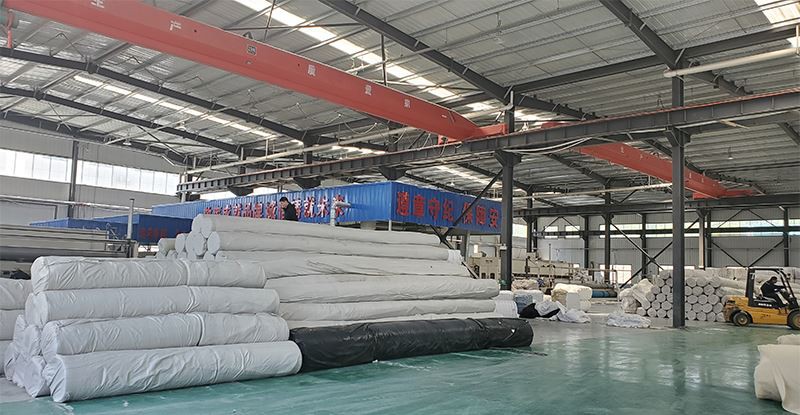

About MTTVS^® factory

MTTVS^® Geosynthetics Company specializes in the research, development, production, promotion and application of geosynthetics, and is the world's leading supplier of geosynthetics. Founded in 2014 and located in Shandong, China, it has ISO9001, ISO14001 and ISO45001 international authoritative management system certifications. It has strong strength. It has more than 10 international advanced equipment production lines and a large professional engineering and technical team. It has successfully integrated and developed core markets. Customers create maximum value. Through the processing of synthetic raw materials. We develop, manufacture and provide innovative and reliable geosynthetics to improve the performance of our customers' products. Our main business is the production and export of one-stop services and products such as geotextiles, geomembranes, geogrids, geocells, three-dimensional composite drainage nets, ecological bags, drainage boards, 3D geomats, etc.

Our products are exported to 56 countries around the world. Our main customers are from the United States, Germany, Pakistan, India, Kenya, Vietnam, Mirru, Ukraine, Uganda, Bolivia, Ecuador, Australia, France, Sweden, United Kingdom, Hong Kong, Hungary, New Zealand, Poland, Mexico, Brazil, Bangladesh, Thailand, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, UAE, Saudi Arabia, Qatar, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia, etc.

Today, we not only manufacture the best quality geosynthetics products, but also provide professional design and installation services. OEM, ODM, custom development and manufacturing can also be provided. MTTVS^® Geosynthetics is a strong brand manufacturer in the production, promotion and sales industry. By providing advanced solutions and products in various applications and markets worldwide, MTTVS^® Geosynthetics continues to set industry standards and become the most important leader.

Welcome global industry partners to discuss cooperation!

MTTVS^® geosynthetics you can trust.

All staff of our company will continue to work tirelessly, engaged in manufacturing Stable Needle Punched Non-Woven Geotextile and improve innovation capabilities, striving to be a industry leader enterprise and create world-class products. We have established a perfect marketing system that integrates sales, customer service, market research, analysis and decision making. We accelerate the transformation and upgrading of our product structure in conjunction with relevant national industrial planning and economic restructuring policies.
